5 profiles. A wide choice of Colorbond, DecoWood, and timber look colours. Supplied and installed by Coast to Valley Garage Doors.

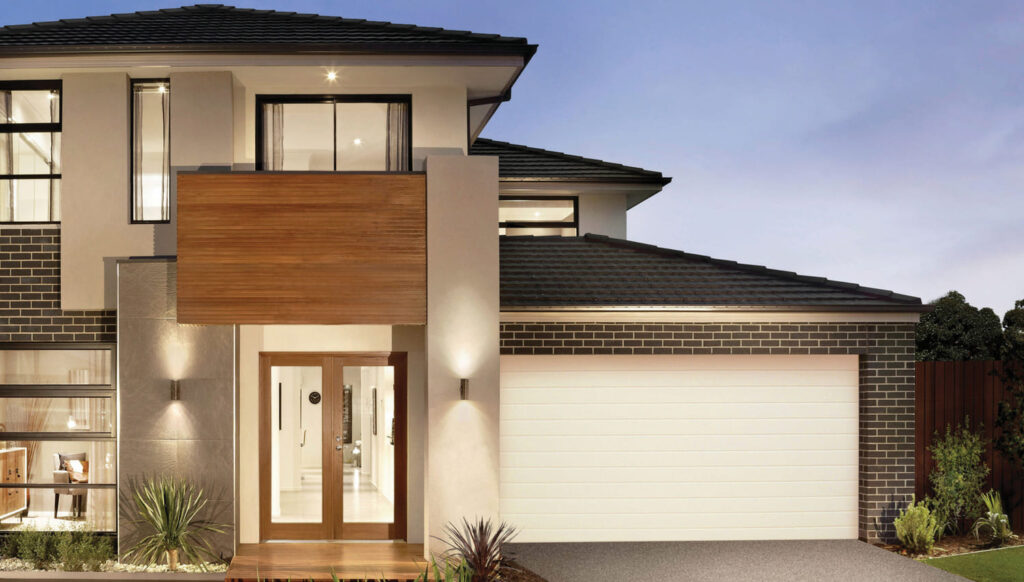

A sectional garage door opens vertically overhead in horizontal panels, maximising driveway space and providing a clean, contemporary entry point for your home. Coast to Valley Garage Doors supplies and installs the full range of sectional panel lift garage doors across our local service area, from a simple Colorbond finish to a detailed DecoWood timber look door with window inserts.
Your garage door is one of the largest exterior features of your home. The right profile, colour, and finish can significantly enhance your street presence. With five profile options, multiple finish ranges including over 70 Colorbond and Dulux powdercoat colours, and optional window inserts, there is a combination to suit every architectural style and budget.
Select from five door profiles: Slimline, Flatline, Glacier, Ranch, or Heritage. Each profile creates a different panel texture and visual weight. Ranch and Heritage profiles are the only options compatible with window inserts.
Select from DecoWood timber look finishes, Colorbond Classic colours, Timbergrain colours, UniCoteLux Architectural and Timbers of the World series, a Matt Range, or request from over 70 Dulux powdercoat colours. Physical samples are available for comparison.
Add an automatic opener for hands-free operation. Coast to Valley installs the SD1000 Std and SD1000 Pro sectional door openers to pair with this door range. Optional accessories include PE Beams, wireless keypad, battery backup, and more.
Smooth or textured finish

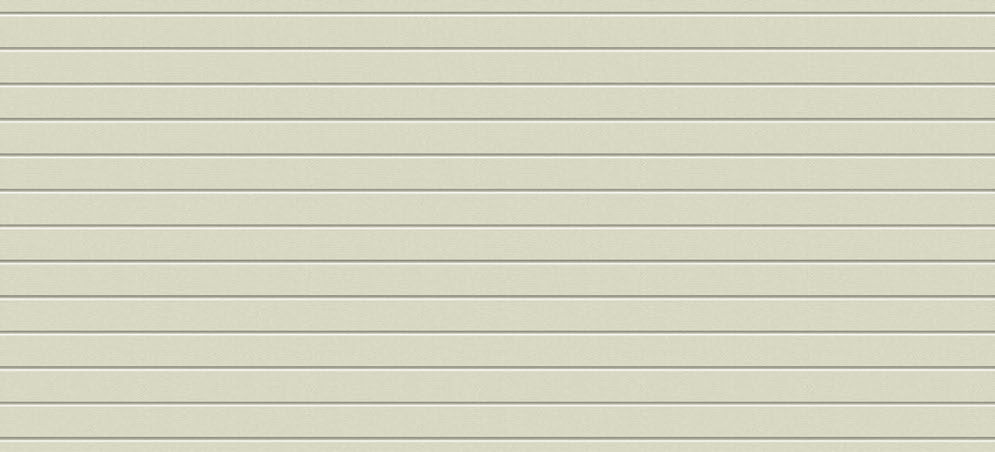

Narrow horizontal ribs with a clean, low-profile shadow line. The most contemporary profile option. Suits modern and minimalist homes. A popular choice for Colorbond and DecoWood finishes.
Smooth finish may attract an additional charge.
Smooth or textured finish

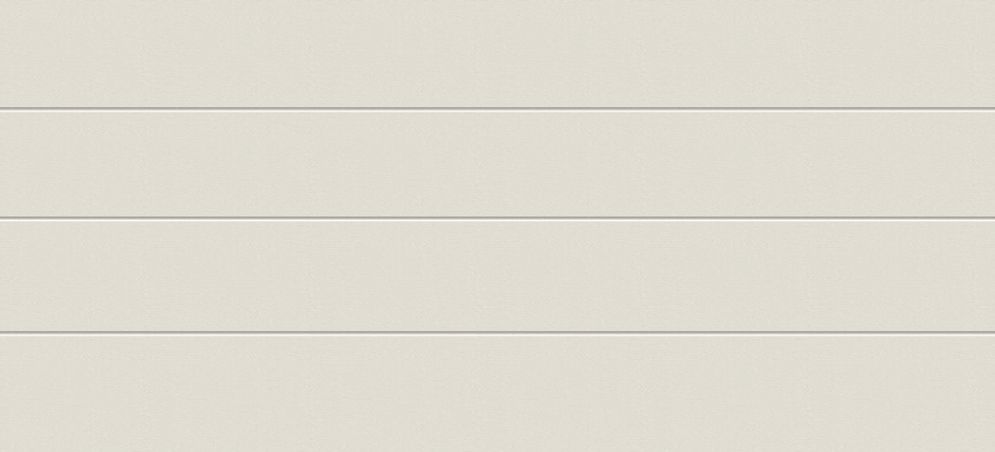

A wider flat panel face with a gentle shadow line. Suits both contemporary and transitional architectural styles. Works well with matt and Colorbond finish options.
Smooth finish may attract an additional charge.

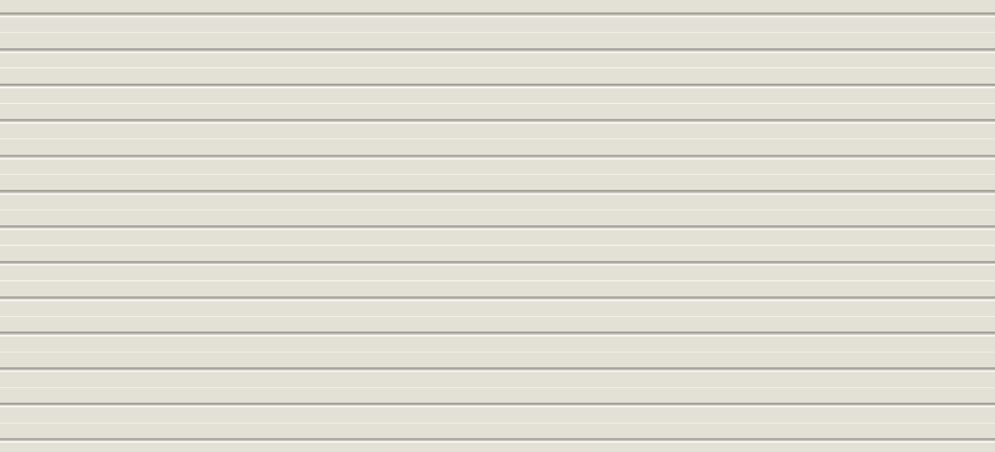

Smooth or textured finish
A smooth wider panel with a subtle raised horizontal detail. One of the most versatile profile options, suitable for a broad range of home styles. Works well with both plain Colorbond and DecoWood finishes.
Smooth finish may attract an additional charge.
Windows available. Textured finish only.

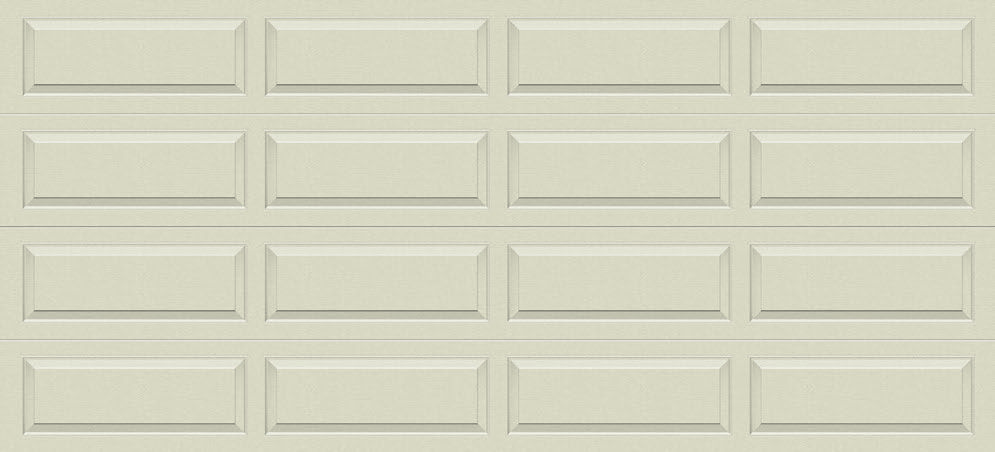

Bold horizontal ribs with a pronounced shadow line. Suits rural, acreage, and American farmhouse architectural styles. Ranch is one of two profiles compatible with window inserts in standard Colorbond colours.
Windows available
Textured finish only

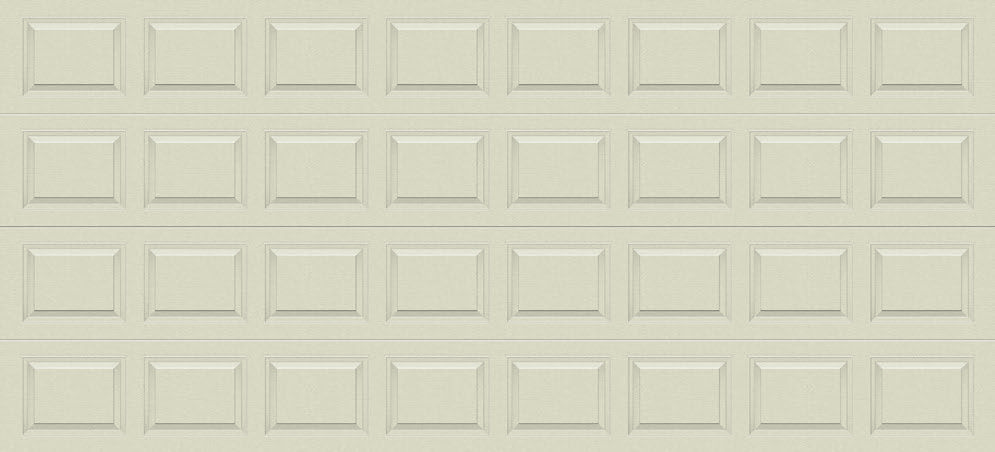

A fine, closely spaced rib pattern with a classic, traditional panel face. Suits heritage, federation, and period-style homes. Heritage is one of two profiles compatible with window inserts in standard Colorbond colours.
Profile and finish notes:
Windows can only be fitted to Ranch or Heritage profiles in standard Colorbond colours. Smooth finish is available on Slimline, Flatline, and Glacier profiles only and may attract an additional charge. For smooth finish doors, shadowing (a natural rippling from roll forming flat steel) will be more visible in certain lighting conditions.

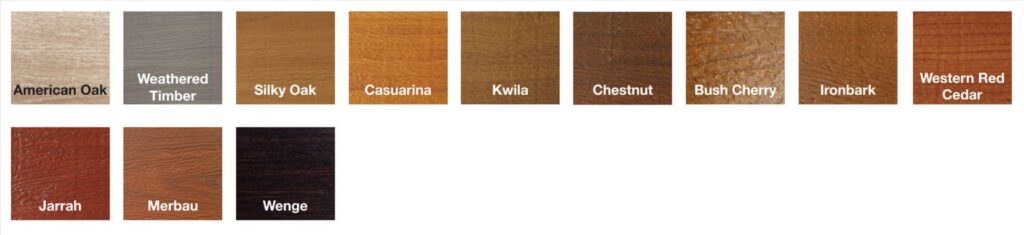

American Oak | Weathered Timber | Silky Oak | Casuarina | Kwila | Chestnut | Bush Cherry | Ironbark | Western Red Cedar | Jarrah | Merbau | Wenge
DecoWood finishes replicate the appearance of natural timber species on a steel door panel. Available on most profiles. Request physical samples before ordering as printed and screen colours vary.

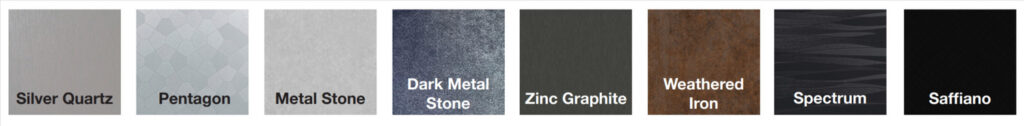

Silver Quartz | Pentagon | Metal Stone | Dark Metal Stone | Zinc Graphite | Weathered Iron | Spectrum | Saffiano
UniCoteLux Architectural Series is only available on Flatline, Slimline, and Glacier profiles. Saffiano has a smooth finish.

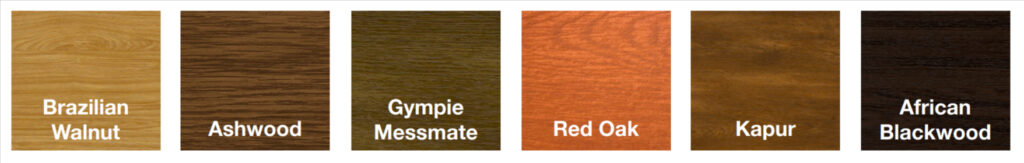

Brazilian Walnut | Ashwood | Gympie Messmate | Red Oak | Kapur | African Blackwood
Ashwood has a smooth finish. All other Timbers of the World colours have a slightly textured finish. Available on Flatline, Slimline, and Glacier profiles only.

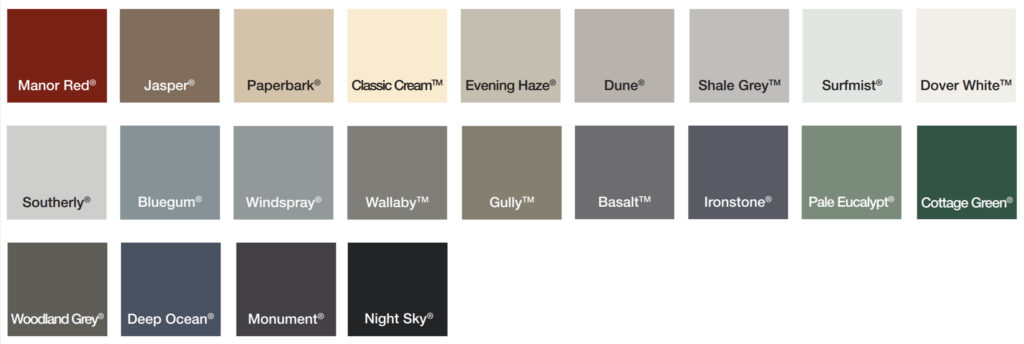

Manor Red | Jasper | Paperbark | Classic Cream | Evening Haze | Dune | Shale Grey | Surfmist | Dover White | Southerly | Bluegum | Windspray | Wallaby | Gully | Basalt | Ironstone | Pale Eucalypt | Cottage Green | Woodland Grey | Deep Ocean | Monument | Night Sky | Classic Cedar | Caoba | Blushed Teak | Ashen Black Oak
The full standard Colorbond classic colour range. Includes the Timbergrain timber look colours (Classic Cedar, Caoba, Blushed Teak, Ashen Black Oak).

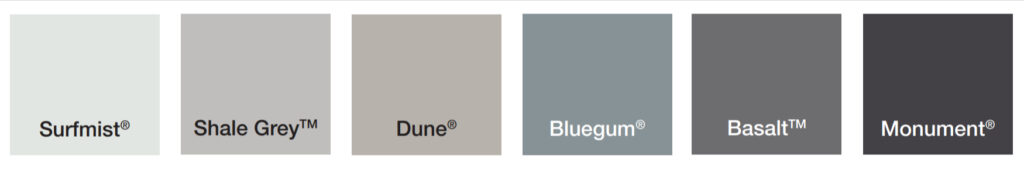

Surfmist | Shale Grey | Dune | Bluegum | Basalt | Monument
Matt Range note: Surfmist, Basalt, and Monument are Colorbond coil in textured finish only. Shale Grey and Dune are powder coated and available in smooth or textured finish (pricing varies).
Available on sectional doors only. More than 70 Dulux powdercoat colours are available for sectional doors. Contact us to discuss current availability and colour options.
Colour Disclaimer
Colours shown on screen and in printed materials are a guide only. Due to the limitations of digital displays and printing processes, exact colour matches cannot be guaranteed. We strongly recommend comparing your selection against physical colour samples before placing your order. Colours are subject to change without notice. Please ask your Coast to Valley consultant for current available samples.

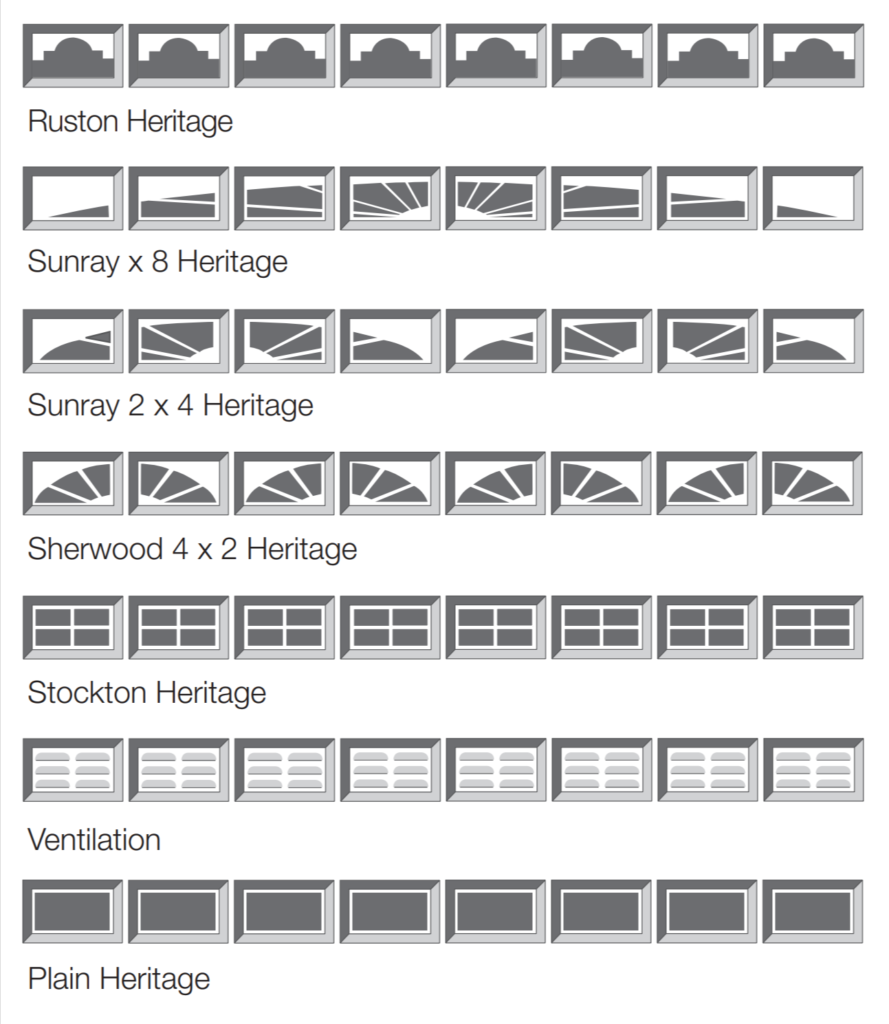

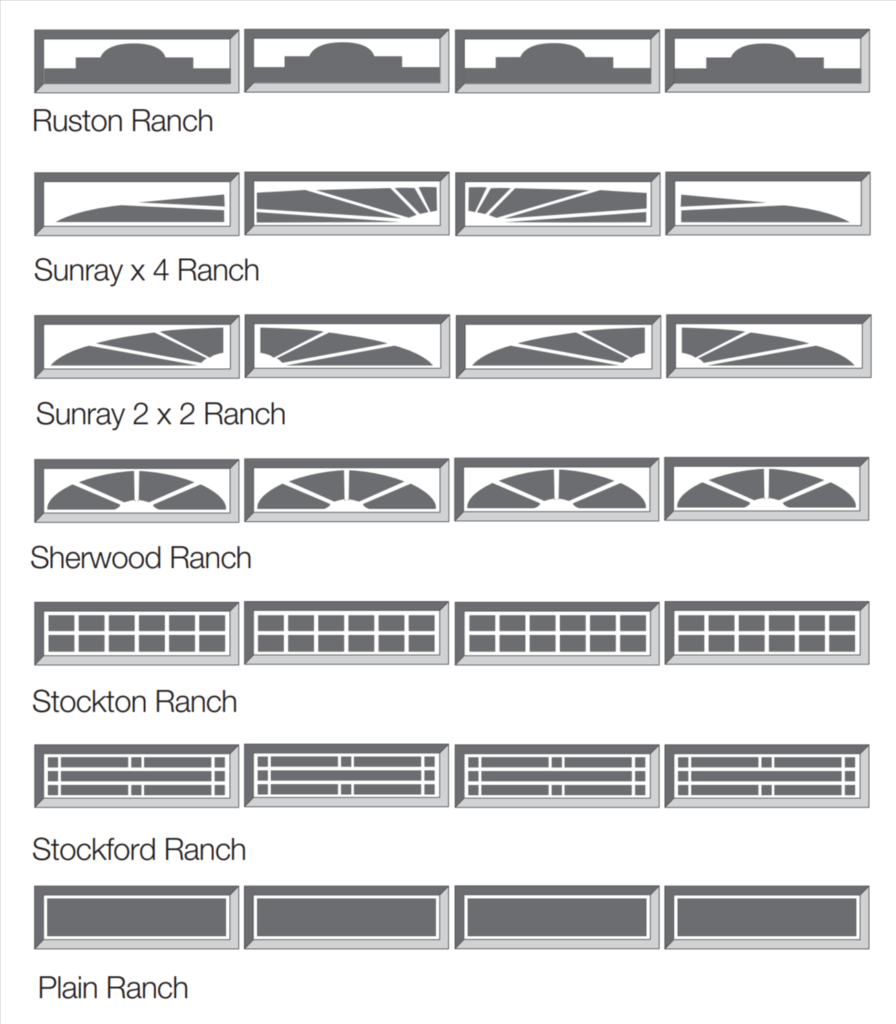

Windows can be added to Ranch or Heritage profile doors in standard Colorbond colours. Seven window styles are available for each profile. A ventilated option is available for garages where airflow is needed.
Windows can be added to Ranch or Heritage profile doors in standard Colorbond colours. Seven window styles are available for each profile. A ventilated option is available for garages where airflow is needed.
Window restriction: Windows are only available on Ranch and Heritage profiles in standard Colorbond colours. Windows cannot be fitted to Slimline, Flatline, or Glacier profiles, or to DecoWood, UniCoteLux, or Matt Range finishes.
Use these measurements to assess whether a sectional door can be installed in your garage. Our team will take all required measurements on-site before any order is placed.
| Measurement | Requirement |
|---|---|
| Door width | Opening size + minimum 25mm per side |
| Door height | Opening size + 30mm |
| Side room (standard) | 125mm minimum |
| Side room (low headroom) | 150mm minimum |
| Headroom (standard) | 290mm minimum |
| Headroom (low, front mount) | 200mm minimum |
| Headroom (low, rear mount) | 150mm minimum |
| With operator fitted | Add 50mm to minimum headroom required |
| Example | 2130mm opening height requires 2160mm high door |
The above table is a guide only. Some dimensions may vary depending on the specific door and installation configuration. On-site measurement is always confirmed before ordering.
| Category | Dimension |
|---|---|
| Opening dimensions | Opening Size Height (left hand side) |
| Opening Size Height (right hand side) | |
| Opening Size Width | |
| Clearance dimensions | Side Room (left hand side) |
| Side Room (right hand side) | |
| Headroom |
Our team manages the full process from initial measurement through to a finished, operating door.
Door Type: Sectional panel lift garage door
Profiles: 5 options: Slimline, Flatline, Glacier, Ranch, Heritage
Finish: Smooth or textured (profile dependent)
Colour Ranges: DecoWood, Colorbond, UniCoteLux, Timbergrain, Matt Range
Windows: Available on Ranch and Heritage profiles
Automation: Compatible with sectional door openers
Made in: Australia
Automate your sectional garage door with one of the following openers, both available through Coast to Valley Garage Doors.
5 year motor warranty, belt drive, 100m remote range. F-linX Wi-Fi available as add-on. Suitable for most residential sectional doors.
10 year motor warranty, built-in Wi-Fi, 1000N force, wireless accessories. The premium opener choice for this door range.
A sectional garage door (also called a panel lift or sectional panel door) opens vertically overhead in horizontal sections along ceiling-mounted tracks. Unlike a tilt door that swings outward, a sectional door moves entirely within the garage opening, maximising driveway space and providing a flush, weathertight seal when closed.
Five profiles are available: Slimline, Flatline, Glacier, Ranch, and Heritage. Ranch and Heritage are available in textured finish only. Slimline, Flatline, and Glacier are available in smooth or textured finish. Smooth finish may attract an additional charge. Window inserts are only available on Ranch and Heritage profiles.
The range includes DecoWood timber look finishes (12 colours), Colorbond Classic colours (25 colours including Timbergrain), UniCoteLux Architectural and Timbers of the World series (14 colours across Flatline, Slimline, and Glacier profiles), a Matt Range (6 colours), and more than 70 Dulux powdercoat colours on request. Physical samples are available for all finish groups.
A DecoWood garage door features a realistic timber look finish applied to a steel door panel. It replicates the appearance of natural timber species including American Oak, Jarrah, Merbau, Wenge, Kwila, and Silky Oak, without the maintenance, warping, or termite vulnerability of real timber. DecoWood is available in 12 timber species colours.
Yes. Window inserts are available for Ranch and Heritage profile doors in standard Colorbond colours. Seven window styles are available for each profile, including ventilated options for garages where airflow is required. Windows are not available for Slimline, Flatline, or Glacier profiles.
Sectional garage doors include a curved FingerProof safety joint between panels to prevent finger entrapment and seal out the elements. Heavy duty PVC weather seals and aluminium bottom rails provide wind, dust, and weather resistance. Composite nylon and steel hinges ensure quiet, smooth operation. Automation-ready doors can be fitted with PE Beams for an additional safety layer.
Yes. Most sectional garage doors can be fitted with an automatic door opener. Coast to Valley Garage Doors installs the SD1000 Std (5 year warranty, belt drive) and the SD1000 Pro (10 year warranty, built-in Wi-Fi, 1000N force) to pair with this door range.

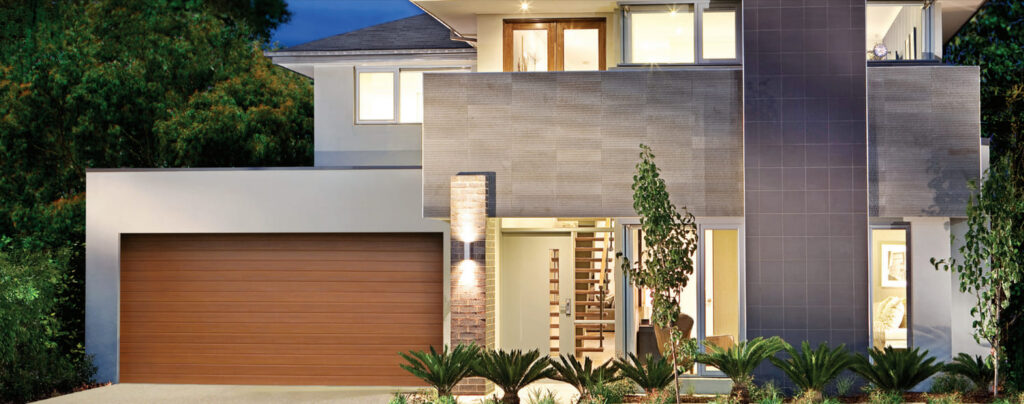

Yes. Coast to Valley Garage Doors supplies and installs sectional garage doors across the local service area. We handle on-site measurement, profile and colour consultation, full installation including tracks, springs, hinges, and hardware, connection to your door opener, and post-install handover.
Coast to Valley Garage Doors supplies and installs the full sectional garage door range across local suburbs. Contact us to request colour and profile samples, arrange an on-site measure, or discuss which combination suits your home and budget.
